How to use this ECG Toolkit

Start here

Three tools share one tracing. ECG Markup puts calipers and annotations on an ECG. Ladder Studio draws laddergrams over it. The QTc Calculator measures the QT and corrects it. Open a tracing in any tab and the others pick it up, along with its calibration.

It's built for people who already read ECGs and want to measure precisely, mark up tracings for teaching, or explain conduction. It doesn't try to reteach interpretation.

Everything runs on your own device. Tracings you open are never uploaded.

Getting a tracing in

Use Open tracing, drag a file onto the page, or paste a screenshot. ECG Markup also opens PDFs. Phone photos of paper, EHR screenshots, monitor strips and device electrograms all work.

Tracing prep

When a tracing opens, the toolkit checks the paper grid. A square tracing goes straight in. A slight tilt is straightened automatically, with an Undo in case you'd rather not. A photo taken at an angle gets a Square it up card, which corrects the perspective so calipers line up across the whole strip. Tracings without a grid, such as electrograms, are left alone. In ECG Markup, Edit image has manual straightening, perspective, cropping and lighting.

Calibration

Every measurement depends on it. The toolkit reads the grid and proposes a scale: the blue calipers should span five large boxes, which is one second at 25 mm/s. If they do, accept it. If not, put one leg on a heavy grid line and the other five large boxes later. For a tracing without paper, calibrate to a known interval instead, such as timing marks or a paced cycle length. A calibration set in one tab is used by the others for the same tracing.

ECG Markup

A typical session

1. Open a tracing and let tracing prep level it.
2. Check calibration. If the calipers span five large boxes, tap Looks right.
3. Measure. Add calipers as you need them. Each gets its own color, and you can label it RR, PR, QRS or QT. A QT caliper with an RR caliper shows the QTc on the tracing. Click an RR caliper's value on the tracing to show ms, bpm or both. Point at a caliper's chip in the panel and its caliper glows on the tracing, and the other way round.
4. March repeats a caliper's interval across the tracing, to check regularity or look for hidden P waves. In flutter, march the flutter waves to see whether one falls halfway between the ones you can see. Bold beside March makes the lines thicker, in exports too.
5. Annotate. Arrows point to small or hidden P waves, boxes group parts of a rhythm, numbered markers name beats, and text adds a short caption. + Amplitude measures height, such as ST deviation or QRS voltage.
6. Redact names, IDs and dates before sharing anything.
7. Export image, then Copy image to paste into a message or slide, or Save PNG.

Clear all beside the calipers or the annotations removes that whole group.

The QTc

The QTc Calculator measures the clearest lead automatically when a tracing opens and shows each step: calibration, RR, QRS and QT. Tap Review on any step to check or adjust its calipers, or measure by hand.

What a clinician really needs to know

We measure the QT for one reason: it marks susceptibility to torsades de pointes. The ideal way to choose a correction formula would be to compare how well each predicts torsades or sudden cardiac death. That large comparison doesn't exist. Most formulas come from mathematical fitting, and the usual test, whether the corrected value is independent of heart rate, isn't obviously the right one. Bradycardia itself raises torsades risk, so some rate dependence may be appropriate.

The best evidence I've found is a study of nearly 50,000 patients that compared five formulas by how well they removed heart rate and predicted 1-year mortality (Vandenberk et al., PACE 2018). Not every study agrees: a smaller cohort from Iran found Bazett predicted cardiac mortality best, while a larger one from China found Bazett performed worst. Here is how the formulas in this toolkit compare:

• Fridericia did best with a narrow QRS. It's the default when the QRS is narrow.
• Rautaharju corrects for QRS duration and did best with a wide QRS or ventricular pacing. It's the default when the QRS is wide.
• Bazett is the formula most ECG machines report. It overcorrects at fast rates, undercorrects at slow ones, and labels most wide-QRS patients prolonged. It's shown because that's the number in the chart.
• Dodd/Smith is offered for a wide QRS too, as used in Dr. Smith's ECG Blog's own calculator.

All-cause mortality isn't torsades, though. Critical illness can lengthen the QT for reasons unrelated to arrhythmia. Every QTc formula is an imperfect estimate of an imperfect marker. Use it alongside the clinical picture, not instead of it.

Measuring the QT

I usually measure in leads II and V5, which have the best evidence behind them from long QT syndrome. If another lead shows the end of the T wave much more clearly, use it. I find the end of the T wave by eye.

U waves are the hard part, and nobody really knows what to do with them. Many references say to exclude them. My reasoning runs the other way. Torsades is a disorder of repolarization, and a U wave is repolarization too. I mostly measure the QT closely when I'm dosing antiarrhythmic drugs, and there I'd rather overestimate and lower a dose than underestimate and miss torsades. So I include any possible U wave. This is a deliberate, conservative choice, not a standard.

For the RR interval, I use the cycle ending in the beat I measured the QT on. The QTc works best in regular sinus rhythm without ectopy. With premature beats, the "right" RR is unclear. In atrial fibrillation, average several beats, and treat the result as a rough estimate.

500 ms is the number I teach. It doesn't forbid a QT-prolonging drug, but at 500 you should be paying attention. In practice, dosing antiarrhythmics is a judgment call that weighs the number against the patient. A patient with a defibrillator is protected in a way one without isn't, and a faster rate is somewhat protective, so I'm more lenient when the patient is tachycardic.

Further reading: Guangzhou Biobank cohort, 2024 · Fasa PERSIAN cohort, 2022 · How to measure the QT interval (ESC)

Laddergrams

A laddergram draws conduction over time: one tier per level (usually atrium, AV node and ventricle), vertical impulses where each wave fires, and sloped lines for conduction between them. If you're new to reading them, start with Ken Grauer's How to Read Laddergrams (ECG Blog #188: a 5-minute video and links to more than 140 laddergram examples), then his How to Draw a Laddergram.

Worked example: 3:2 Wenckebach

1. Place the P waves. Move the mouse pointer over a P wave (no need to click) and press the 1 key on your keyboard: an impulse drops into the atrial tier, the first tier, right where the pointer is. Do the same for each P wave of the cycle. Click an impulse and use the arrow keys to line it up exactly with its P wave.

2. Place the QRS complexes. Point at each one the same way and press 3 (the third tier, the ventricle), or use Diagram → Detect QRS complexes and delete any you don't need.
3. Draw conduction. Press C, click the bottom of the first atrial impulse, then click the top of its ventricular impulse. The line finishes on its own. Repeat for the second beat.

4. Draw the blocked beat. Press C, click the bottom of the last atrial impulse, hover in the middle of the node tier, and press B to end the line with a block bar.

5. Press Esc to return to Select.
6. Repeat the cycle. Drag a box around the whole cycle, press ⌘C, hover where the next cycle begins, and press ⌘V. Sinus rate varies a little, so nudge each pasted P wave onto its P wave with the arrow keys. Repeat for each cycle.

Tip: flutter waves with Repeat and Distribute

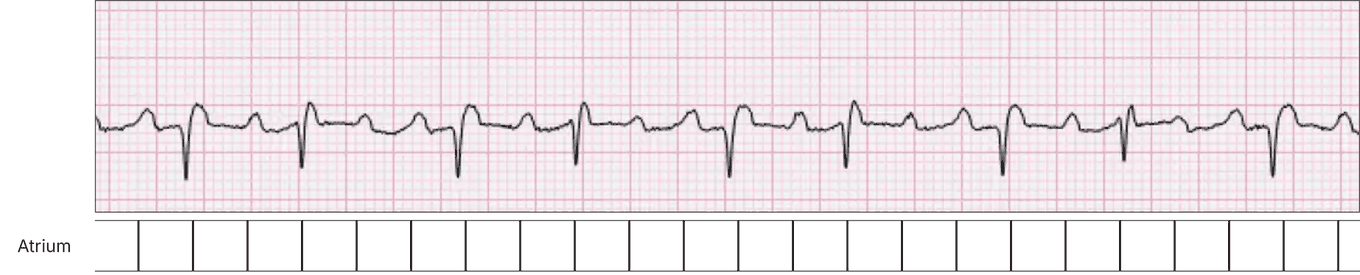

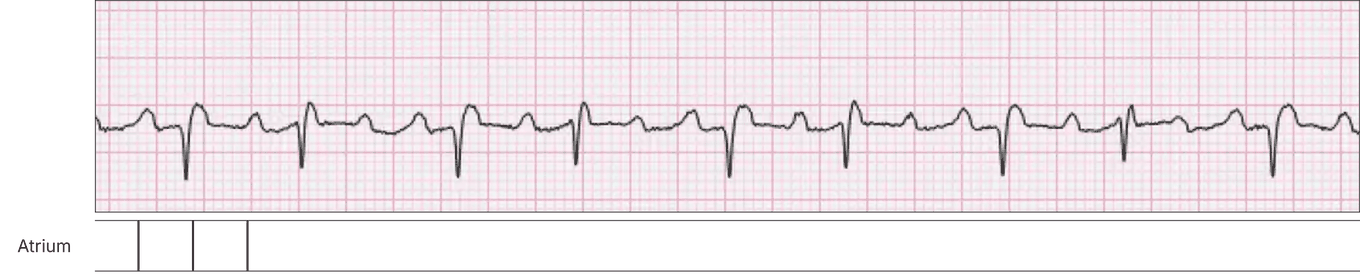

Reentrant atrial rhythms like flutter fire at an almost perfectly fixed cycle length, unlike sinus P waves. Drop two or three flutter waves with 1, select them and press R to repeat them across the strip. Then pin the first and last impulses to flutter waves you can see clearly, select them all, and press D to space them evenly. Flutter waves buried in QRS complexes and T waves land where they must be.

Why draw a laddergram? A story

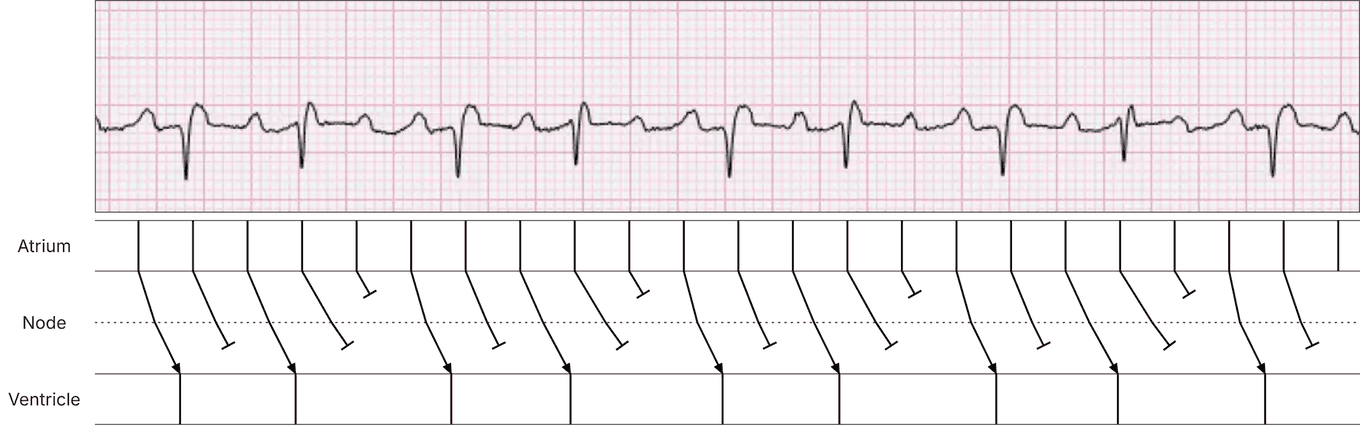

The usual multilevel block is 2:1 in the upper AV node and Wenckebach below it. The first time I saw a different arrangement, I tried to force it into that pattern and couldn't. The overall ratio was 5 P waves to 2 QRS complexes. If the upper level were 2:1, five P waves would have to become two and a half, which can't happen. It only works as 5:4 Wenckebach on top and 2:1 below: five become four, and four become two. I didn't really understand the tracing until I tried to draw it.

More tools

Ectopic (E) starts conduction from a dot inside a tier, for PVCs, PACs and junctional beats. Multilevel block (M) guides you through block at two levels. Stamps place ready-made PVC, AVNRT, AVRT, fusion and exit-block patterns. Dashed lines suit concealed or uncertain conduction. Select lines to set a pathway (fast red, slow blue, accessory pathway purple) or change their ends, width and color.

The keys worth learning first

I E C S

Impulse, Ectopic, Conduct, Select

Enter B Esc

While drawing a line: finish it, finish it with a block bar, or cancel it

R ⌘Z Delete

Repeat the selection across the strip, undo, delete the selection

← →

Nudge the selected impulse (hold ⇧ for finer steps)

The rest are in All shortcuts.

Keeping your work

Diagrams save automatically to Library in the side panel, in this browser. Save as copy keeps the current version and carries on in a copy, so you can try another interpretation. Download ladder file saves the whole editable diagram, ECG included, to open on another device or send to a colleague. PNG and SVG are pictures only.

Pacemaker timing Beta

New in 0.13 and still in beta: if a label or flag looks wrong, please send it with Feedback, ideally with a screenshot.

The Device timing tier in Ladder Studio lays a pacemaker's timers under a real strip. Mark each P wave, QRS and pacing spike, and it labels them the way a programmer's marker channel would, draws the timers each event starts, and flags anything that doesn't fit the settings. It works for DDD, DDI, VVI and AAI.

Worked example: DDD pacing

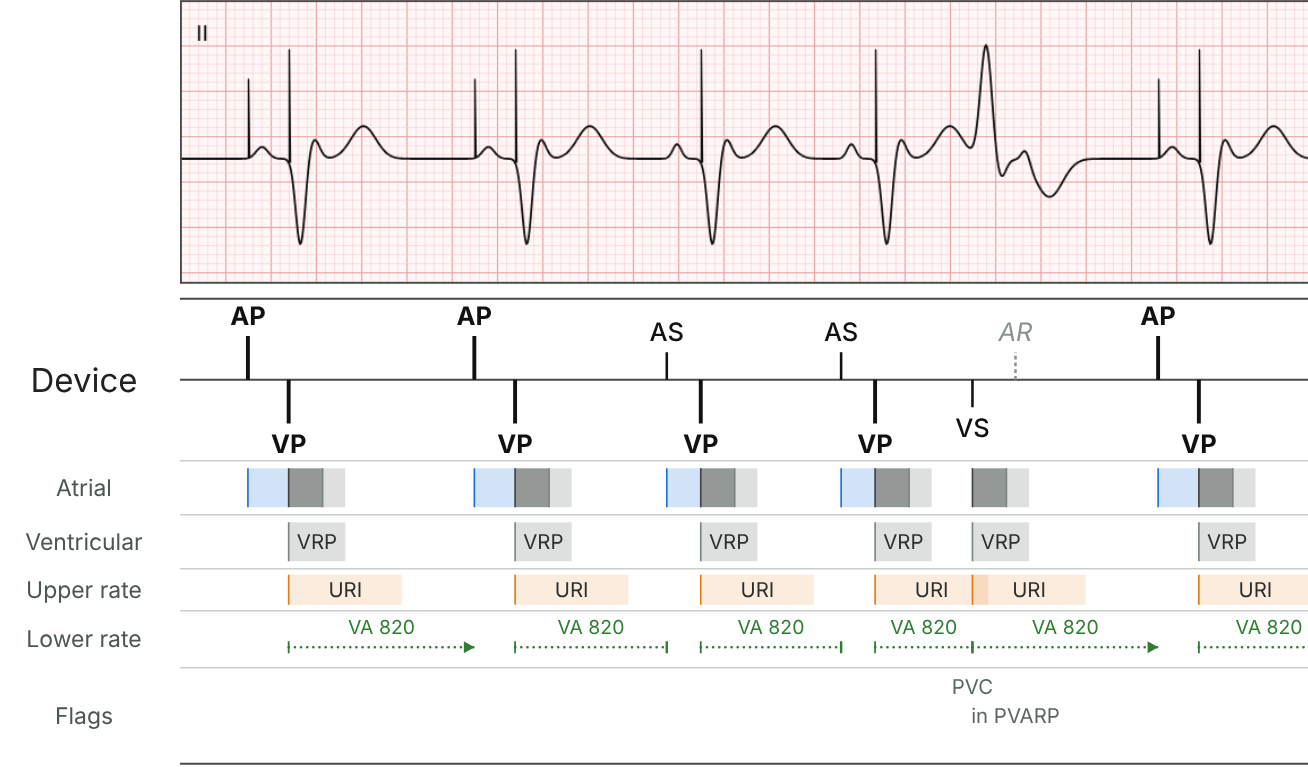

Open Ladder Studio and choose DDD pacing under the empty strip, or Device → Try the paced example. The strip shows lower-rate pacing, then sinus rhythm being tracked, then a PVC whose next P wave falls in PVARP, then a sinus tachycardia faster than the upper rate.

1. Mark the events. Point at a P wave or an atrial pacing spike and press A; point at a QRS or a ventricular spike and press V. The Device timing tier appears under the ladder the first time. On a touch screen, pick Impulse and tap above the Device line for atrial, below it for ventricular. For a regular paced rhythm, mark one cycle, select it and press R to repeat it across the strip.
2. Read the labels. Each event is matched against the time the device would pace. On time is paced (AP, VP); earlier is sensed (AS, VS). AR is a P wave sensed in a refractory period, so it isn't tracked, and (A) falls in blanking, where the device can't see it. Select any event to see why it got its label.

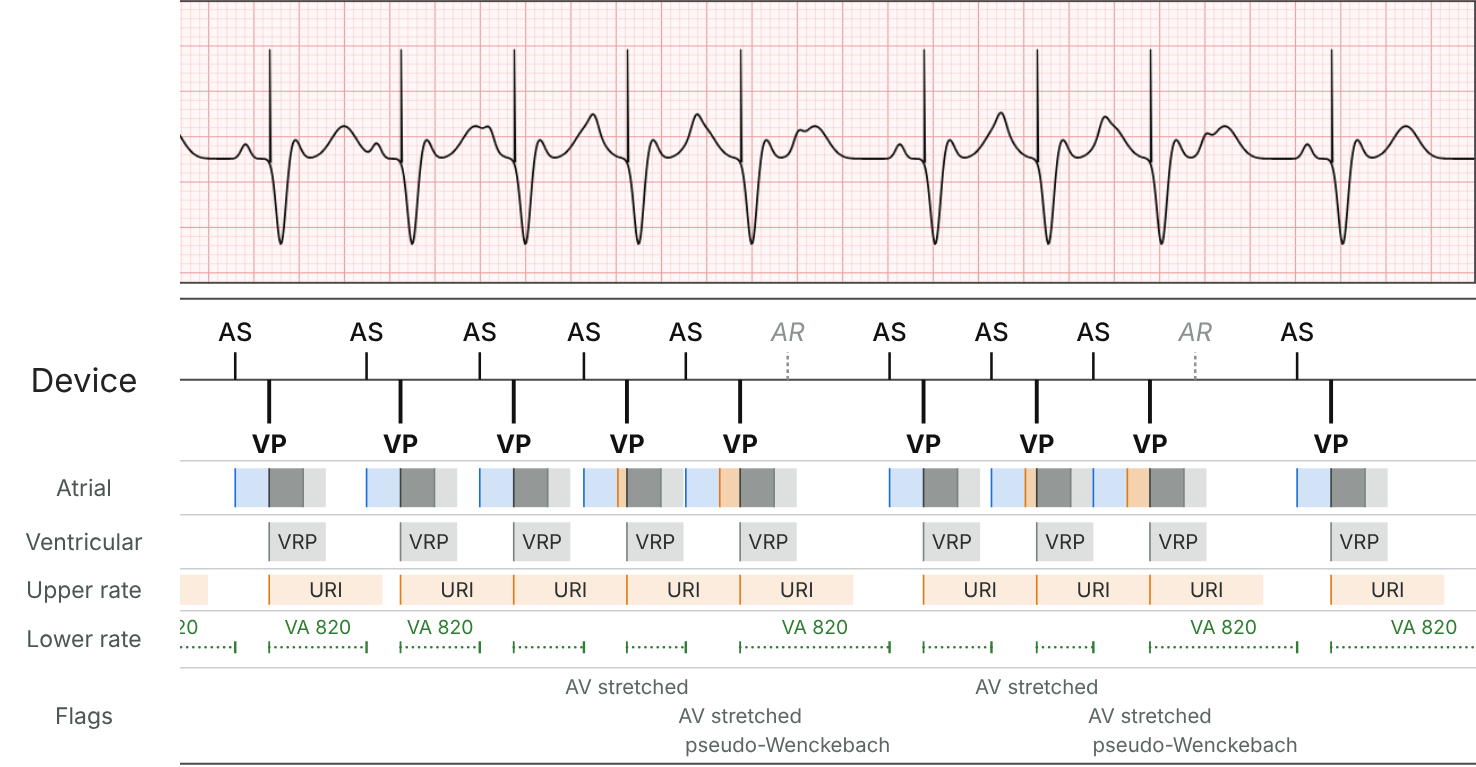

3. Read the timers. Atrial: the AV delay after each atrial event (blue, orange where it stretches to wait for the upper rate), then PVAB (dark) and PVARP (gray) after each ventricular event. Ventricular: the ventricular refractory period. Upper rate: how soon the ventricle may be paced again to track a P wave. Lower rate: the escape timer, ending in an arrow where it fired, a bar where a sensed event reset it, and a red × where it ran out and nothing paced.
4. Check the flags. Red flags disagree with the settings; gray ones are teaching notes. The Device tab lists them all; click one to select its event.

Settings

Pick the mode and the timers in the Device tab. The defaults are typical DDD settings: lower rate 60, upper tracking rate 120, paced AV delay 180 ms, sensed AV delay 150 ms, PVAB 150 ms, PVARP 250 ms and VRP 250 ms. Lower-rate timing can be ventricular-based, where the VA interval is fixed, or atrial-based, where the A–A interval is fixed and a PVC restarts the timing. Match within sets how close an event must be to a due pace to count as paced.

When the label is wrong

The tier reads only timing; it can't see a pacing spike. A native beat that lands right when a pace was due reads as paced, and a spike you didn't mark can't be counted. Select the event and set its label to Sensed, Paced or No capture, or double-click it to cycle through them. When a spike you mark as paced only makes sense if the device missed an earlier beat, that earlier beat is flagged as undersensing.

What gets flagged

• Undersensing: a pace on the schedule the device would have had if it had missed an earlier P wave or QRS.
• Oversensing: a pace that was due but never came (the event after it is marked late).
• Noncapture: any spike you label No capture.
• Upper-rate behavior: AV delays stretched by the upper rate, pseudo-Wenckebach, and 2:1 block when the P–P interval is shorter than the total atrial refractory period (sensed AV delay + PVARP).
• PMT: P waves landing at the same short interval after each ventricular event, just outside PVARP, tracked again and again, especially after a PVC.
• Notes: PVCs as the device defines them (a ventricular event with no atrial event before it), and P waves in PVARP, PVAB or the AV delay.

The tier exports with the ladder in PNG and SVG and saves in the Library and in ladder files. Turn off Show flags in the Device tab for a clean teaching image.

All shortcuts and troubleshooting

Ladder Studio

1–9

Drop an impulse in that tier at the cursor (1 on a P wave, 3 on a QRS)

A / V

Device timing: mark an atrial or ventricular event at the cursor

I C E M T

Impulse, Conduct, Ectopic, Multilevel block, Text

Enter

While drawing: finish the line

B / A

While drawing: end with a block bar / an arrowhead

Backspace

While drawing: remove the last point; Esc cancels the line

S or Esc

Select

D

Distribute selected impulses evenly

R

Repeat the selection across the strip

J

Connect each QRS to the P wave before it (1:1)

⌘C ⌘V

Copy, then paste at the cursor

← →

Nudge the selection (hold ⇧ for finer steps)

Delete · ⌘Z

Delete the selection · undo (⇧⌘Z redoes)

Alt

Hold to turn off snapping

Z + drag

Zoom to a beat; 0 fits the window

ECG Markup

← →

Nudge the last caliper leg you touched (hold ⇧ for finer steps)

⌘C ⌘V

Copy the selected caliper or mark, then paste it at the cursor

M

March the selected caliper on or off

Delete

Remove the selected caliper or mark

⌘Z

Undo

⌘ + scroll

Zoom

On Windows, use Ctrl in place of ⌘. On a phone, the Fine-tune pad nudges calipers precisely.

If something looks wrong

• Measurements seem off. Check the calibration first: the blue calipers should span five large boxes. Recalibrate if not.
• No grid found. Calibrate by hand, using a known interval if there's no paper.
• Detect QRS misses or adds beats. Delete the extras and drop any misses with 3. If it warns that the time scale looks off, fix it under Diagram → Time scale.
• Device timing labels look wrong. Check the time scale first, then the settings in the Device tab. A beat right at a pacing time can be either; set its label by hand.
• A ladder diagram is missing. The Library lives in one browser on one device. Use Download ladder file to move diagrams between devices.

About

I'm Willy Frick, an electrophysiology fellow in my final year of training. I'm passionate about ECGs and clinical education. I love building learning tools, teaching at the bedside and online, and talking ECGs with people all over the world. I fell in love with ECG interpretation during cardiology fellowship, and Dr. Smith's ECG Blog was my introduction to ischemia. It's still the foundation of how I read ischemic ECGs today.

These tools started with frustration. I used to draw laddergrams by hand in Keynote. A rough one took 15 to 20 minutes, and one I was proud to share could take over an hour. Small changes would break them, and they still never looked quite right. Other ladder tools existed, but I didn't find them user-friendly or flexible enough. So I built a QT measurement tool, and when that worked well, I built calipers. When those worked well, I built the laddergram tool.

Doing electrophysiology without calipers is like managing diabetes without a blood glucose. Calipers make rigorous ECG analysis possible, and laddergrams make conduction explainable. Drawing a laddergram is also a test of understanding: it shows you which parts of a tracing you can't yet explain, and it often reveals the small deflection that turns out to be the key.

Feedback

Found something that doesn't work, or have an idea? Use Feedback at the top right. A screenshot helps a lot; please crop or blur any patient information first.

Using what you make

Use your exported images however you like, in talks, posts, teaching, or conversations with colleagues. No credit needed. If you find the toolkit useful, please share the link so others can use it too.

Thanks

To Ken Grauer for his thoughtful feedback, and to my fellow editors at Dr. Smith's ECG Blog.
